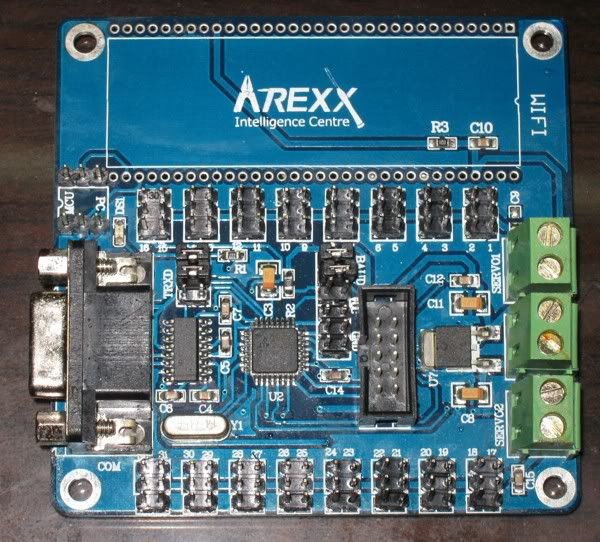

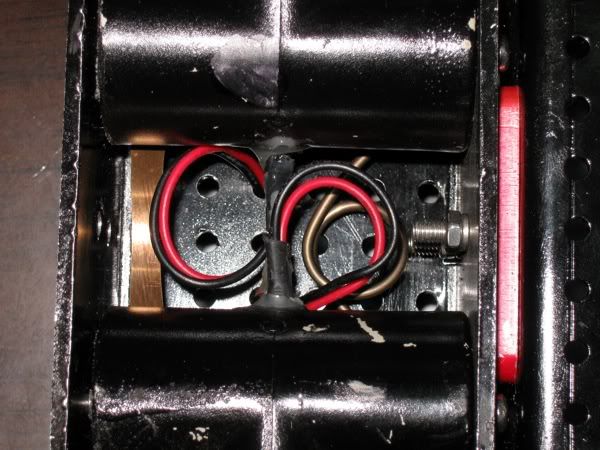

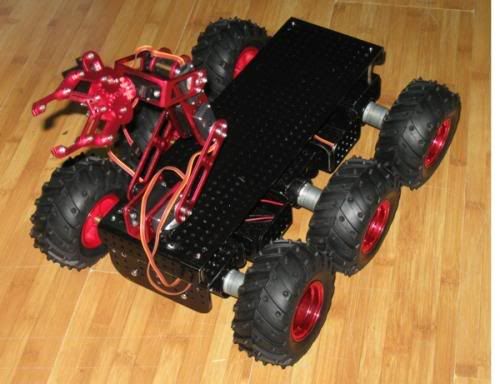

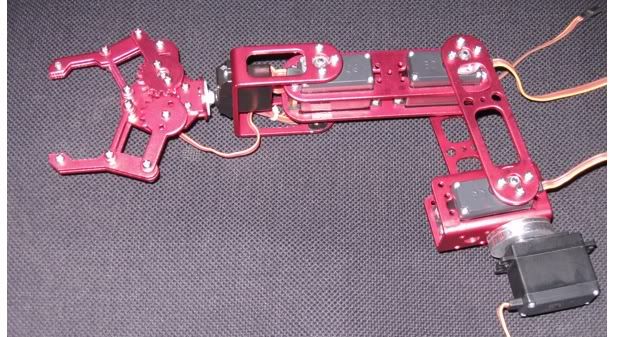

Wild Thumper 6WD Chassis - Black (34:1 gear ratio) Facotry is currently prototyping a new 6WD platform and also have a cool robot arm kit, both are made of aluminium. they have decided to merge the two into a cool 6WD all terrain robot. The serial interface that comes with the robot arm can control 32 servos leaving most of the MCU pins free to deal with sensors and other motors. This is easily the most rugged and beefy robot chassis in its price range. The Wild Thumper 6-Wheel platform is the best of both worlds: It takes almost no time to go from un-boxing to rolling chassis, but it's also ready to be expanded on and makes great base stock for a serious 'bot. Each of the six motors are mounted on independent suspension and outfitted with 34:1 steel gearboxes (no more stripped gears!). The motors are wired together on a terminal strip inside the 2mm thick anodized metal frame and can be controlled on two channels (left and right). The entire chassis is perforated with 10mm pitched, 4mm diameter mounting holes and there is plenty of room interior to the chassis for batteries, drivers and other support hardware. The chassis comes with 6 of those gnarly Dagu 120mm off-road wheels. Because there are six motors total, each channel of your motor driver will need to be able to supply a decent amount of current to get things moving. This is a differential drive platform, meaning that a turn in accomplished by simply driving one side faster or slower than the other, or turning the two sides in opposite directions. Because the "pivot point" of this turn is essentially made up of the opposing three tires a gradual turn will require less power than a sharp one and the more power you can source, the more maneuverable your platform will be. We have had success driving this platform with our Monster Moto Shield. There is also a Wild Thumper motor controller listed below as well. Dimensions: 420 x 300 x 130mm (16.5" x 12" x 5") Features:
